There are three recommended steps for configuring barcode scanners. This article contains configuration barcodes that are specific to the most commonly implemented/recommended scanners
- Enable carriage return suffix/linefeed
- Enable streaming presentation mode to allow for scanning without pulling the trigger
- Enable USB Keyboard Emulation mode or USB Com Port Emulation Mode depending on how the scanner will be used
Teemi 2D Barcode Reader
1) Adding a Carriage Return/Linefeed
Scan the following barcode:
2) Enable Streaming Presentation Mode
If you would like for the scanner to scan barcodes without pulling the trigger, scan the following barcode:
3) Enable Emulation Mode
Scanning Tickets - USB Keyboard Interface Mode
NOTE: There are two models of this scanner, the T22 and the T22N. The T22N is the newer model, while the T22 is older and requires a different bar code to be put into keyboard emulation mode.![](https://img.zohostatic.com/zde/static/images/file.png)
NOTE: USB KEYBOARD EMULATION MODE IS ENABLED BY DEFAULT
For the T22N:
Scan the following "USB HID-KB" barcode:
For the T22:
Scan the following "USB HID-KB" barcode:
Scanning Concession Items - USB COM Port Emulation Mode
![](https://img.zohostatic.com/zde/static/images/caution.png)
ONLY FOLLOW THIS SECTION IF YOU PLAN ON SCANNING CONCESSION ITEMS
In order to scan concession items in the selling screen, your scanner must be in USB COM Port Emulation Mode. To enable this on the Teemi 2D Barcode scanner, click the below link and download the T22 driver for the USB COM Port Emulation.
After installing the driver, scan the barcode below to activate USB COM Port Emulation:
![](https://static.zohocdn.com/zoho-desk-editor/static/images/file.png)
You should only need to scan one of these!
T22:
or:
Setting baud rate:
Baud rate is the rate at which the scanner and computer will communicate, and it's important to set the speed in the reader. By default, the baud rate is usually set to 9600 for COM ports Windows, but the USB COM port emulation default baud rate is set to 115200. Scan the following barcode to rectify the baud-rate mismatch.
Honeywell Xenon 1900 Reader

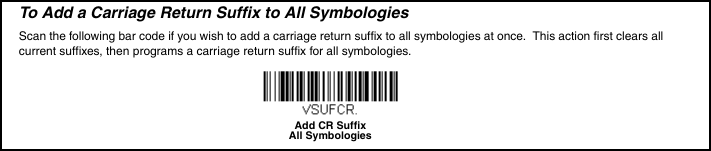

1) Adding a Carriage Return/Linefeed
Scan the following barcode:
2) Enable Streaming Presentation Mode
Scan the following barcode:
3) Enable Emulation Mode
Scanning Tickets - USB Keyboard Interface Mode
Scan the following "USB HID-KB" barcode:
Scanning Concession Items - USB COM Port Emulation Mode
![](https://img.zohostatic.com/zde/static/images/caution.png)
ONLY DO THIS IF YOU PLAN ON SCANNING CONCESSION ITEMS.
In order to scan concession items in the selling screen, your scanner must be in USB COM Port Emulation Mode. To enable this, click the below link and download the driver for the USB COM Port Emulation.
After installing the driver, scan the barcode below to activate USB COM Port Emulation:
See Also for Honeywell
Zebra DS457 Reader
Scan the following barcodes:
2) Enable Streaming Presentation Mode
Scan the following barcode:
3) Enable Emulation Mode
Scanning Tickets - USB Keyboard Interface Mode
Scan the following "USB HID-KB" barcode:
Scanning Concession Items - USB COM Port Emulation Mode
![](https://img.zohostatic.com/zde/static/images/caution.png)
ONLY FOLLOW THIS SECTION IF YOU PLAN ON SCANNING CONCESSION ITEMS
In order to scan concession items in the selling screen, your scanner must be in USB COM Port Emulation Mode. To enable this, click the below link and download the driver for the USB COM Port Emulation.
After installing the driver, scan the barcode below to activate USB COM Port Emulation:
See Also for Zebra
- Factory Reset Barcode(s)
-
![](https://helpdesk.rts-solutions.com/galleryDocuments/edbsn630ab3477b075a594fb22efe5c8ef6150843ec17e604c9b8438f97c7b27fccffc55d5a155dacadc7b945e0a4d22c40e2?inline=true)
Zebra DS9208 Barcode Scanner
1) Adding a Carriage Return/Linefeed
Scan the following barcode:
2) Enable Streaming Presentation Mode
Scan the following barcode:
3) Enable Emulation Mode
Scanning Tickets - USB Keyboard Interface Mode
Scan the following barcode:
*Factory Default Reset Barcode*
Scan the following barcode to reset the barcode scanner to factory default settings:
Partner N6300 Barcode Scanner
Adding Carriage Return
CR1000 Barcode Scanner Configuration Guide
Additional Notes On Barcode Scanner Programming
Concession Item Scanning
- Please see Scanning Concession Configuration for further direction on configuring your reader and concession items for this feature.
- Tickets can also be scanned in this mode, as long as the scanner is configured at Setup -> Local Computer -> Barcode. More information on setting this up can also be found in Scanning Concession Configuration.
